Nearly seven in ten of service technicians now favor compression connectors over soldering for hard-to-reach or gas line work. That trend reinforces the major need for reliable, leak-resistant joins on modern job locations.

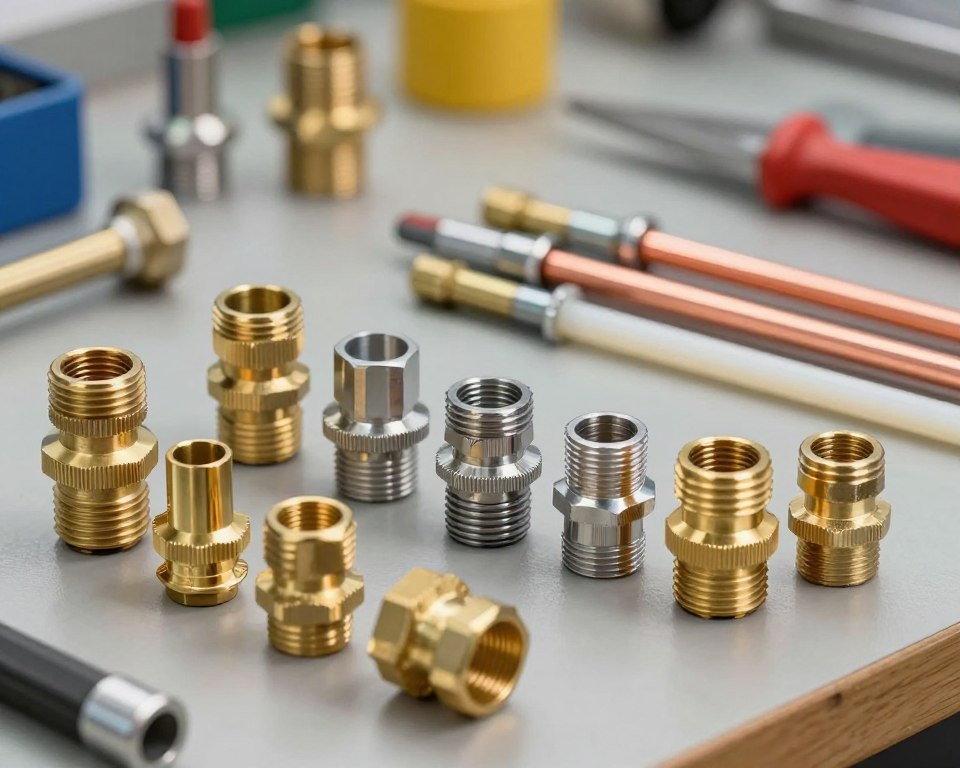

Purchase 1 4 Compression Union
This concise guide dives into Compression Union Brass and related compression fittings used across plumbing, HVAC, and instrumentation systems in the United States. It offers practical tips on choosing the correct 1/4 compression fitting, installing brass union assemblies, and troubleshooting leak issues. It also covers material compatibility.
Whether you’re a professional plumber, HVAC tech, instrumentation specialist, or a skilled DIYer, this guide was built for you. It targets practical job scenarios: ease of installation, reuse, and brass unions’ functionality when soldering isn’t practical. We’ll break down 1/4 inch compression fittings and couplers, calling out their top applications.
For parts and supplies, InstallationPartsSupply.com is a go-to supplier for brass compression union parts, compression nuts, and ferrules. They ship matched parts quickly. The sections ahead outline size selection, pressure ratings, and install tips to avoid leaks and minimize callbacks.
Key Takeaways
- Compression Union Brass offers a no-solder, reusable joint for multiple tube types.
- Brass compression union connectors are great for confined spaces and field repairs.
- 1/4 compression fitting and 1/4 inch compression fitting sizes are widely used in plumbing and instrumentation systems.
- InstallationPartsSupply.com carries nuts, ferrules, and unions for fast replacement and easy matching.
- Proper selection and installation reduces seepage, with detailed steps provided later in the guide.
What Brass Compression Union Fittings Are And How They Work
A brass compression union fitting links two tubing runs without heat. It includes a body, a nut, and olives for a leak-tight seal. The 1/4compression fitting is often used in instrumentation, refrigeration, and plumbing repairs.
Definition And Key Components
The brass compression union consists of three core parts. The union body accepts line on both ends. The compression nut threads onto the body, driving the ferrule into place. The olive creates a seal by compressing onto the tube’s outside diameter.
Union fittings allow the joining of two tube ends inline without heat. Each end has its separate ferrule and nut, making quick joining of varied tube sections during field service or job-site repairs.
Principle Of Operation
To put together, insert the line into the union body and secure the compression nut. When you tighten moves the nut, which forces the ferrule into the body’s tapered bore. This motion translates into radial compression around the tubing.
This radial compression forms a line-contact seal between the ferrule and tube. A proper fit delivers a metal-to-metal or metal-to-plastic seal interface based on materials. Wrong tightening can damage the ferrule or fail to seat, compromising the seal.
Materials And Compatibility Notes
Brass unions are valued for their corrosion resistance and ductility. They perform well with copper tubing and many potable water systems. They also can be used on low-pressure gas service when assembled with gas-grade PTFE tape and remain accessible.
For higher-pressure systems or aggressive fluids, stainless fittings are often preferred. Plastic compression fittings are suitable for light-duty water work. The 1/4compression fitting is available in brass and stainless to match different tubing OD, pressure requirements, and media requirements.
Compression Union Brass: Advantages, Common Uses, And Applications
Brass compression unions bring together durability and practical use, making them a great fit for plumbing and instrumentation jobs. They can be installed quickly, with no need for the need for heat, making them ideal for confined or combustible spaces. The 1/4 compression union and miniature 1/4compression fittings are popular for their compact, dependable joins.
Advantages Of Brass Unions
Installation is quick and tool-friendly. No heat source or soldering is needed, cutting install time and hazards. Many brass compression union components are reusable in many cases, helping save on repeat service calls. Ferrules may need to be replaced after multiple assemblies.
Brass holds up to corrosion and bends slightly under stress, creating a leak-tight seal with copper tube. This lowers galvanic concerns when paired with copper or some stainless parts. Manufacturers list many brass compression union products for wide temperature and pressure ranges, fit for both household and light industrial use.
Typical Applications In The United States
In household plumbing, brass compression union fittings are widely used beneath sinks, at service valves, and on water-heater connections. The 1/4 compression coupling is often used in beverage systems, ice machines, and small water lines that need easy service access.
Gas distribution with reachable copper tubing sometimes employs brass compression unions for checks and quick disassembly. HVAC and refrigeration technicians use brass compression unions for service runs that must be disconnected and reconnected during maintenance.
Instrumentation, lab, and industrial panels use compact 1/4compression fittings for sampling, sensing, and air lines. These environments value the 1/4 compression union for leak-tight joins and fast replacement.
Why Pick Unions Over Other Options
Compression unions save time compared to soldered connections. Without a torch, work can move forward in heat-restricted areas or where rapid return-to-service is required. A brass compression union fitting makes possible adjustment and later breakdown for repairs and changes.
Soldered joints remain slimmer and can cost less in material cost. Union fittings offer flexibility and field-service advantages, making them the preferred choice when access, speed, and reuse are priorities. For many installers, a 1/4 compression coupling offers the sweet spot between compact size and reliable performance.
Selecting The Correct 1/4 Inch Compression Fitting And Related Sizes
Choosing the right fitting involves grasping the terminology and conducting a simple parts check. It’s essential to know if “1/4” refers to the tube outside diameter or the thread size before ordering. Many catalogs list multiple SKUs for tubing, union bodies, and inline joiners under the term “1/4 compression coupling”, “1/4compression fitting”, or “1/4compression coupler”.
Getting familiar with common terms
It’s important to get comfortable with the main components: the nut, ferrule, union body, and coupler. The compression nut presses the olive against the tubing and the fitting taper. A union fitting connects two connections, while a coupler connects two tube ends inline. Always follow the manufacturer’s definitions on product pages for accurate meanings.
Matching tubing OD, ferrule, and thread pitch
The tubing outside diameter must match the ferrule spec precisely. Ferrule shape and body taper can vary by brand. Mixing a ferrule from one brand with a fitting body from another can cause leaks. Ensure that the thread form and thread pitch match for parts that screw together. Know the difference between NPT taper threads and straight, parallel threads that use thread seals or O-rings.
Material notes and soft tubing tips
For PTFE or plastic tubing, verify the ferrule type and whether a tubing insert is required to prevent collapse. Brass ferrules seat differently than stainless ferrules. If you need greater durability to aggressive fluids or heat, consider stainless options over standard Compression Union Brass.
Pressure and temperature factors
Pressure ratings vary based on material and fitting size. Brass and miniature fittings, suitable for instrumentation work, will have lower PSI than larger stainless steel fittings. Always check the manufacturer’s pressure and temperature charts for the specific 1/4 compression coupling or 1/4compression coupler you plan to use.
Practical parts checklist
- Verify whether “1/4” = tubing OD or thread size.
- Align tubing OD to ferrule size and brand profile.
- Verify thread type and pitch; note NPT versus straight threads.
- Confirm pressure and temperature ratings for Compression Union Brass or other materials.
- For PTFE and plastic, check need for tube inserts or redundant seals.
| Item | Typical Use | Key Check | Material Notes |
|---|---|---|---|
| 1/4-inch compression fitting | Pneumatics, instrumentation | Verify if 1/4 = OD or thread | Brass is common; stainless for higher pressure |
| 1/4compression fitting (compact size) | Compact lines, beverage equipment | Match ferrule geometry | Some brands use unique ferrules |
| 1/4compression coupler (inline) | Inline tube connections | Verify tube OD and internal bore | Plastic tubing may need inserts |
| 1/4 compression coupling (panel) | Panel connections, instrumentation | Thread pitch and seal type | Compression Union Brass is a common choice |
| Compression Union Brass unions | Two-port unions, moderate-pressure systems | Maker pressure/temperature charts | Less suited for very high PSI or aggressive chemicals |
Best Installation Practices For Brass Compression Unions
Ensuring a Brass compression union’s service life depends on correct installation. Begin by carefully preparing the tubing and components before any torquing. This early prep is key in preventing seepage and damage later on.
Preparing tubing for a leak-free seal
Use a good pipe cutter to cut tubing straight. Remove any burrs and sharp edges or scratches that could create leaks. It’s also important to check the tubing’s outer diameter for roundness. Uneven diameters, frequent with coil tubing, can hinder proper seating.
Next, slide the compression nut and ferrule (olive) onto the tube correctly. Always use new ferrules, as they help ensure a consistent seal, even on copper lines. For soft plastic tubing, consider using support inserts or supported ferrules to prevent wall collapse.
Correct tightening technique
Begin by hand-tightening the nut. Then, follow the manufacturer’s recommended turn count. This approach helps create the right seal without over-tightening.
It’s a common misconception that tightening more always helps. Insufficient tightening can lead to a failed seal. Excess tightening, on the other hand, can ruin the sealing faces, threading, or create leaks. After initial tightening, pressure up the system and tighten in tiny increments if slight weeps appear.
Using two wrenches and preventing pipe twist
Stabilize the fitting body with one wrench while turning the compression nut with another. This method stops tubing rotation and lowers stress on joints.
In small spaces, ensure the fitting body is supported and lined up before the last turns. This prevents cross-threading and ensures the ferrule installation is right. Proper technique safeguards the fitting from distortion and guarantees a proper seal.
| Step | Action | Why it matters |
|---|---|---|
| 1 | Square cut, deburr, then check OD | Stops leak paths and ensures even compression |
| 2 | Slide the nut and a new ferrule onto the tube | Right ferrule setup makes sealing predictable |
| 3 | Finger-tighten, then turn per spec | Forms proper line-contact seal without damage |
| 4 | Use two wrenches: hold the body, turn the nut | Prevents tube twist and reduces mechanical stress |
| 5 | Test under pressure and tighten in increments | Stops weeps while avoiding over-tightening |
Troubleshooting Leaks And Maintaining Compression Unions
This section walks through common leak causes and simple fixes for Compression Union Brass connections. It guides you through assessing problems, deciding on snugging, component replacement, or switching sealing methods. The aim is to ensure a safe, long-lasting connection for 1/4 compression sizes and other sizes.
How Tight Should A Compression Fitting Be?
Create a tight seal without crushing the line or ferrules by tightening the nut only enough. Many manufacturers recommend turns beyond finger-tightness over torque values. For copper lines, stop tightening when you feel it snug up and apply only a few small quarter-turns with a wrench.
Excessive tightening can misshape ferrules, mark tubing, and complicate later take-apart. Over-tightening is a frequent cause of leaks and wear to thread surfaces on Compression Union Brass parts.
How To Fix A Leaking Compression Fitting
Start with the simplest step: hold the union body steady and tighten the nut a slight amount with a second wrench. This often fixes small leaks without full breakdown.
If the leak won’t stop, disassemble the joint. Remove the nut and ferrule, then check the tubing and ferrule for scoring. Replace any damaged ferrule before reassembling.
Apply gas-grade PTFE tape only for gas-line service when the manufacturer allows. Do not apply sealant to the ferrule unless advised by the maker. For PTFE tubing showing cold-flow creep, use a fitting with an internal O-ring or redundant seal to prevent leaks.
Reassemble with a fresh ferrule and nut when necessary. Tighten by hand, then finish with the recommended turn count. Test the joint under normal system pressure and watch for slow leaks.
When To Replace Ferrules And Fittings
Replace ferrules showing compression deformation, scoring, or taking more turns to seal. Do not reuse ferrules on copper lines for trusted long-term performance.
Replace the body when internal taper surfaces, internal bores, or threading are worn, or when thread galling has occurred on stainless parts. Source replacement ferrules, nuts, and bodies that match the original maker when possible to avoid mismatch problems.
Ferrule Types, Tubing Options, And Material Considerations
Understanding ferrule styles and tubing choices is key to reliable seals. This guide reviews common ferrule profiles and tubing materials. It helps installers and engineers reduce leaks and reduce rework.
One-piece versus two-piece ferrules
Single-piece ferrules are simple. A single part grips the tubing, creating a seal. They work well on soft-wall tubing like brass tubing or some plastic tubing. This design also reduces inventory complexity.
Two-piece ferrule systems split the load into a front and a rotating rear ferrule. The rear ferrule decouples torque from the sealing face. This design improves long-term reliability for stainless tubing and high-vibration applications. It’s popular where thread galling and uneven compression are concerns.
Symmetrical vs. asymmetrical ferrules
Symmetric ferrules have a double-cone profile and install both ways. This saves assembly time when you’re doing many installs. They can shift off-axis more easily, which may lead to minor leaks on very hard plastics.
An asymmetrical ferrule has a tapered profile and must be oriented properly. It gives better in-line alignment and resists off-axis movement. This makes it the top choice for high-precision systems where alignment and repeatable sealing matter.
Tubing choice: metal vs plastic and PTFE concerns
Metal tube like copper tubing or stainless steel offers stiffer walls that hold uniform contact with the ferrule. Use clean, square-cut ends to maintain seal quality with 1/4compression fittings and other sizes.
Rigid plastics like PEEK and PTFE alternatives can work when they are stiff. Soft plastics such as urethane and vinyl are a bad fit without support. Tube inserts help when the wall is too soft.
PTFE tubing brings great chemical resistance and bendability, but it tends to creep under compression and heat. This creep can cause leaks over time. Use fittings designed for PTFE, redundant seals, or internal tube supports to mitigate creep when PTFE tubing is required.
| Characteristic | One-piece ferrule | Two-piece ferrule | Symmetrical ferrule | Asymmetrical ferrule |
|---|---|---|---|---|
| Best for | Soft tubing, low inventory | Hard tubing, high-vibration use | Quick assembly, reversible | Axial alignment, precision work |
| Installation sensitivity | Low | Medium (orientation helps sealing) | Low | High (must be oriented) |
| Resistance to galling | Low | High | Medium | High |
| Suitability with PTFE tubing | Limited without support | Better with inserts or O-rings | Possible with reinforcement | Preferred for critical alignment |
| Typical use with 1/4compression fittings | Common in general plumbing | Chosen for instrumentation and gas lines | Used in high-volume assembly | Used in precision and high-tech work |
Pair ferrule geometry to tubing wall stiffness, system PSI, and assembly throughput. For PTFE tubing, choose fittings that include secondary sealing or use tubing inserts. Consult tubing and fitting manufacturers for final compatibility confirmation before installing critical runs.
Comparison: Compression Unions Vs Soldering And Other Joining Methods
Picking the best joining method is important for safety considerations, serviceability, budget, and visual finish. Compression unions are ideal for tight spots and near flammable materials due to their tools-only installation. Solder joints, on the other hand, produces compact joints that many plumbers prefer for exposed runs and permanent installs.
When to choose compression unions instead of soldering
Choose compression unions when flame use is unsafe or restricted. A 1/4 compression union or a 1/4 compression coupling allows for rapid fixes without taking large systems offline. Compression Union Brass parts enable quick service access and repeated take-apart service for testing work or changes.
Trade-offs vs soldering
Soldered joints are often lower cost per joint and sit closer to the pipe for a cleaner look. Soldering can deliver durable, vibration-ready connections for many permanent installations. Compression unions, while bulkier and more expensive per fitting, are attractive when changes, on-site changes, or spark-free methods are priorities.
Mixing parts and manufacturer compatibility
Do not interchange ferrules, nuts, and bodies from different brands unless the supplier verifies compatibility. Differences in taper angle, ferrule profile length, and thread pitch can undermine the seal. For critical or high-purity runs, use manufacturer-specified ferrules and parts designed to resist galling issues and meet cleanliness standards.
Quick checklist
- If space is tight or open flame is risky, pick compression fittings.
- For long exposed runs prioritizing looks and permanent joints, consider soldering.
- Match up 1/4 compression union parts by brand when using 1/4 compression coupling assemblies.
- When serviceability matters, Compression Union Brass units give repeatable reuse and fast replacement.
Conclusion
Compression Union Brass fittings serve as a reliable substitute for soldering in various fields like plumbing, HVAC, gas, and instrumentation work. When properly selected and installed, they ensure leak-tight performance. This is achieved without the need for heat or specialized tools.
Following installation basics is critical. Ensure tubing is cut square and select the correct ferrule and size, which is essential for a 1/4compression fitting or union. Follow the manufacturer’s guidelines for tightening. This step is vital to avoid twist in the tubing and to maintain the ferrule seal quality.
For addressing minor leaks, a small tightening adjustment often suffices. Replace ferrules that show signs of deformation or work hardening. It’s also important to avoid mixing components from different manufacturers to preserve the seal’s strength. For all your needs, refer to InstallationPartsSupply.com. They offer a wealth of information on sizing charts, matching ferrules and unions, and locating the right Compression Union Brass components for your project.
